HF+ LF - WM-SS130 EMF Shielding Fabric

$49.99 USD

*Note: To purchase a custom length of fabric, place an order for multiple quantities of the 1ft option. The amount ordered will be cut as a single piece unless specified otherwise.

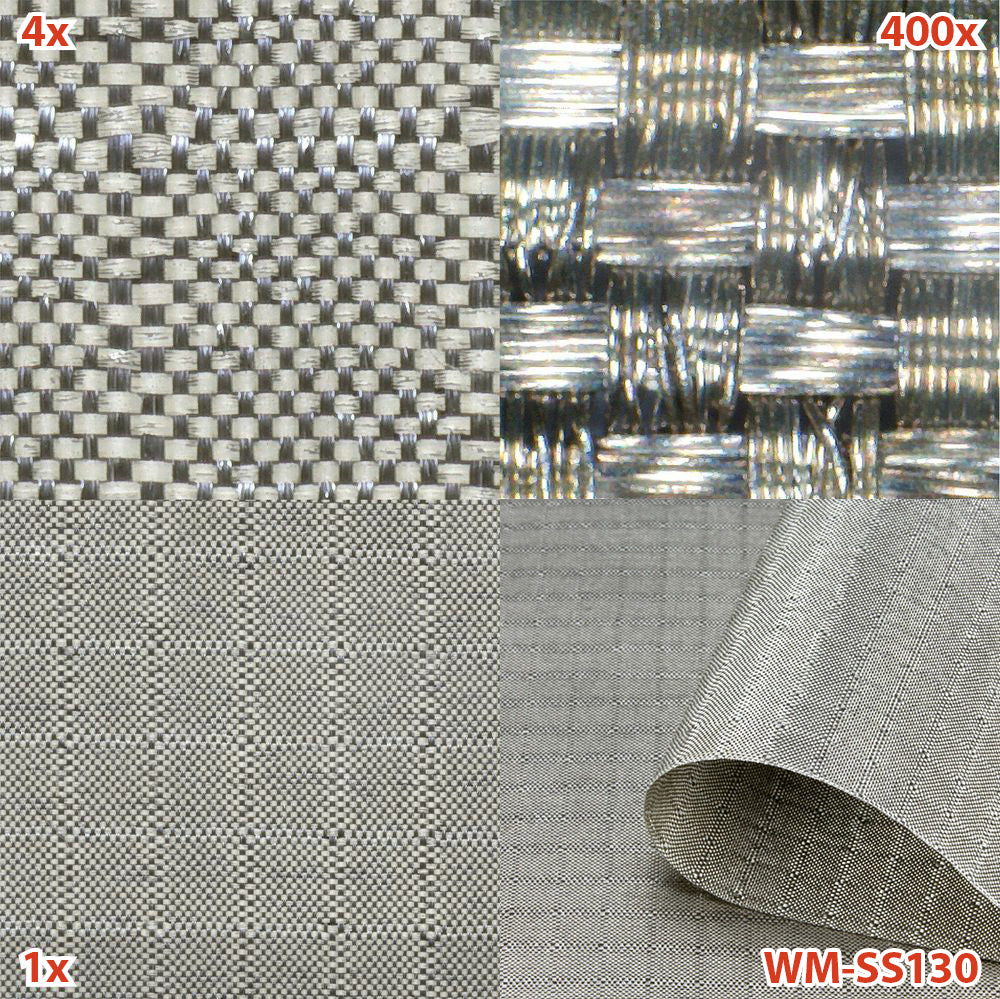

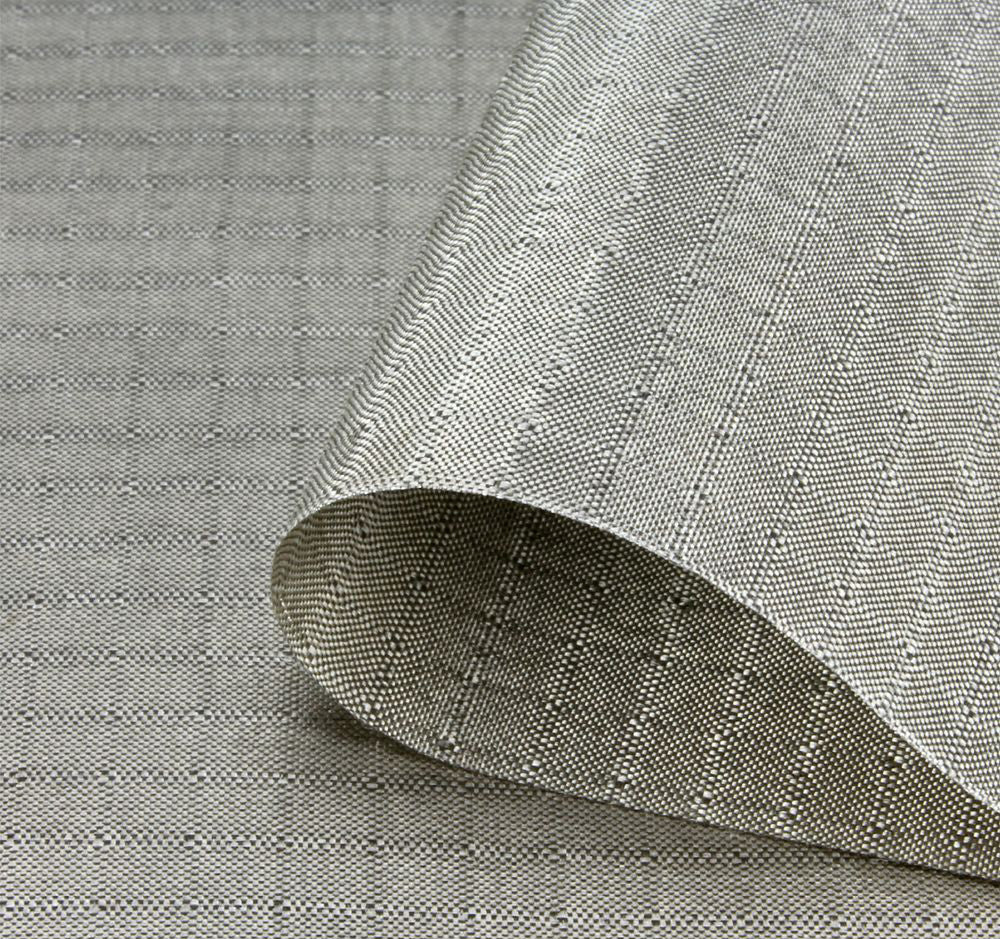

WM-SS130 is a silvered parachute silk / nylon fabric for the protection against high-frequency (HF) and low-frequency radiation (LF). Typical application preferable in technical applications to shield cables, handy bags, room divider, etc. Due to the good washablity the material is perfect as lining of pockets and clothing.

Very high screening attenuation
Antiseptic due to the full silver plating
Contactable (groundable) to shield LF electric fields
Textile similar characteristics: Washable, easy to process. Exception: Do not iron.
Quality grade: High

Order quantity: This product is cut off according to your specifications, a return or revocation are not possible.

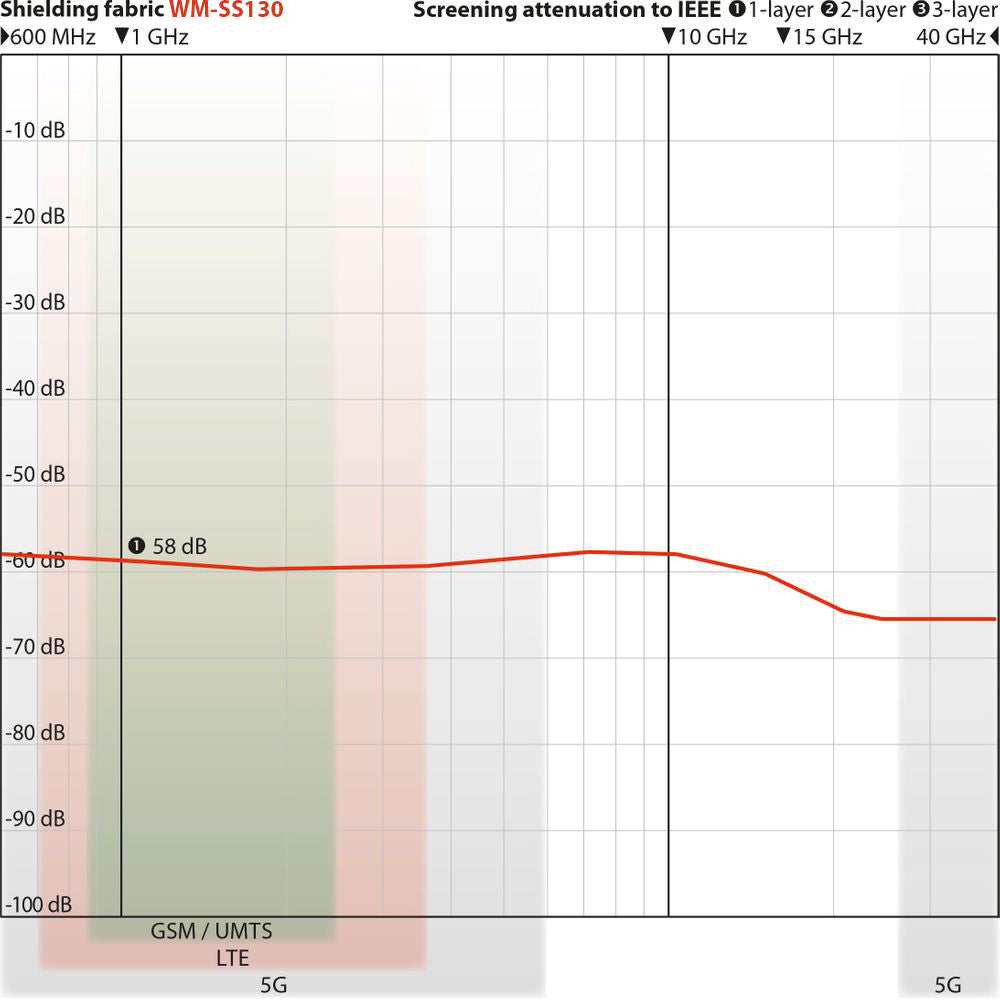

Screening attenuation: All stated attenuation values apply at 1 Ghz. Measurement to ASTM D4935-10 or IEEE Std 299-2006 or IEEEE Std 1128-1998 or ASTM A698/A698M-07. You find the test report above under "Report screening attenuation".

Grounding: Electrically conductive. Can be contacted and grounded to shield electric fields (LF). We recommend a plug GP or GD, with a plate GM or GS, plus a cable GC.

Silver products: 1) Silver fabrics get stainings over time and often have them right from the start! If you don’t want to accept stainings or discoloration, please choose fabrics from Swiss-Shield®., 2) Silver fabrics have a limited durability, which depends on the frequency of movement., 3) Our silver fabrics don’t contain nano-silver, but a thick pure metallic silver layer.

Application: Technical, Clothing, Earthing

Field type: LF (Low frequency alternating electrical fields), HF (High frequency electromagnetic fields)

Ecology: High

Color: Metallic

Technical data

Width: 130 cm, +/- 2 cm
Length: Available by the foot
Attenuation: 58 dB, two-layer 74 dB
Color: Silver
Raw materials: 80 % nylon, 20 % silver
Weight: 45 g/m²
Surface conductivity: 0.2 ohm / inch (2.54 cm)
